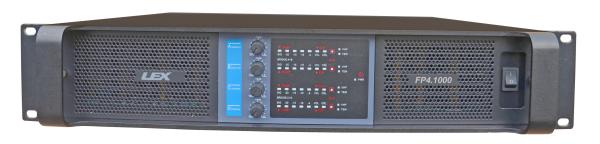

    class d amplifier


    SPECIFICATIONS
    STEREO MODEFP4.800FP4.1000
    8ohms (RMS/THD 1%)800Wx41300Wx4
    4ohms (RMS/THD 1%)1350Wx42200Wx4
    2ohms2000Wx42500Wx4
    BRIDGE MONO MODE
    8ohms2700Wx24400Wx2
    4ohms3100WX25000Wx2

    Signal to Noise110dB
    Output CircuitryClass d
    DistortionLess than 0.02%
    Frequency Response20Hz-20KHz @ 8ohms ±0.5dB
    Damping Factor (@100Hz)>300
    Input ImpedanceBalanced 20K/ Unbalanced 10K
    CoolingVariable-speed fan, rear-to-front air flow
    Protection
    Amplifier ProtectionFull short circuit, thermal, infrasonic, ultrasonic,VHF,vol.gain gradually
    Load ProtectionDC fault power supply,switching power supply under voltage,
    Infrasonic-3 dB, 5 Hz
    DC faultPower supply shutdown
    Ultrasonic-3 dB, 85 kHz
    Short Circuitsactive clip limiting, recover after limiting
    Thermalno output at 95°C, re-work less than 95°C
    Over Currentauto limit
    PHYSICAL
    SHIPPING WEIGHT (kgs)13KG
    SHIPPING SIZE ( WxDxH mm)483x377x210

    All Specification Subject to Change Without Notice.
