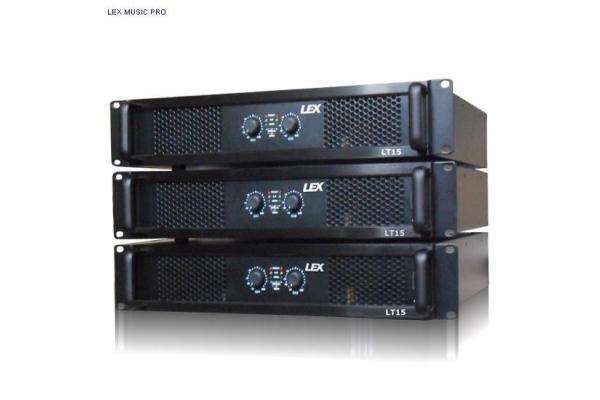

    amplifier


    We are power amplifier manufacturer and supplier. The switch-mode technology on LA amplifier replaces a large, heavy AC transformer with a highly efficient and lighter-weight active design. Special dual power supplys (one power supply for one channel) make the bass stay full and powerful while the high end remains crisp and clean.
    Like other models from LEX, the** can also work as hard into 2 ohm as most. The amplifier use Class H output circuitry, a form of audio "turbocharging" that increases maximum power without affecting the basic audio quality.

    Features:
    Ø High efficiency switching mode power supply design reduce the amplifier weight
    Ø Special dual power supply ensure more power to the bass
    Ø Selectable input sensitivity in voltage 0.775V RMS, 1.0V RMS and 1.4V RMS
    Ø Switch for sub sonic filter 30Hz and below
    Ø Switch for Earth link (on and off)
    Ø Comprehensives Signal (SIG), CLIP (CLIP), Protect (PRO) and PAR/BRG (Parallel/Bridged) indicators to monitor amplifier working status
    Ø All signal inputs and outputs are on XLR male & female (2x XLR male & 2x XLR female)


    SPECIFICATIONS
    STEREO MODELA25LA35LA60LA80LA10LA15
    8ohms (RMS/THD 1%)250Wx2350Wx2600Wx2800Wx21100Wx21500Wx2
    4ohms (RMS/THD 1%)350Wx2500Wx21000Wx21500Wx21700Wx22600Wx2
    2ohms500Wx2700Wx21200Wx21600Wx21800Wx22200Wx2
    BRIDGE MONO MODE
    8ohms650w1000w1800w2800w3500W4000W
    4ohmsn/an/an/an/an/an/a

    Signal to Noise>95dB
    Input Sensitivity0.775Vrms/1.0Vrms/1.4Vrms
    Gain @ 8homs38dB
    Output CircuitryClass AB2-Tier Class H3-Tier Class H
    DistortionLess than 0.02%
    Frequency Response20Hz-20KHz @ 8ohms ±0.5dB
    Damping Factor (@100Hz)>300
    Input ImpedanceBalanced 20K/ Unbalanced 10K
    High Filter30Hz at -3dB
    CoolingVariable-speed fan, rear-to-front air flow
    Input Connectors, each channelXLR male & female
    Output Connectors, each channelspeakon and binding posts
    Rear Panel SwithchesInput Configuration: Bridge/Stereo/Parallel
     Input sensitivity:0.755Vrms,1.0VRMS and 1.4Vrms
     Sub sonic filter: 30Hz and below
     Earth link: on/off
    Front Panel ControlsGain Attenuator: 0 to ∞ dB Power On/Off
    Front Panel IndicatorsSignal (SIG), CLIP (CLIP), Protect (PRO) and PAR/BRG (Parallel/Bridged)
     Power STY/on
    Protection
    Amplifier ProtectionFull short circuit, thermal, infrasonic, ultrasonic,VHF,vol.gain gradually
    Load ProtectionDC fault power supply,switching power supply under voltage,
    Infrasonic-3 dB, 5 Hz
    DC faultPower supply shutdown
    Ultrasonic-3 dB, 85 kHz
    Short Circuitsactive clip limiting, recover after limiting
    Thermalno output at 95°C, re-work less than 95°C
    Over Currentauto limit
    PHYSICAL
    SHIPPING WEIGHT (kgs)9.51012.611314.515.5
    SHIPPING SIZE ( WxDxH mm)560x420x138560x542x138
    All Specification Subject to Change Without Notice.
